AS-EVH100GIZ-XX
AS-EVH100GIZ-XX

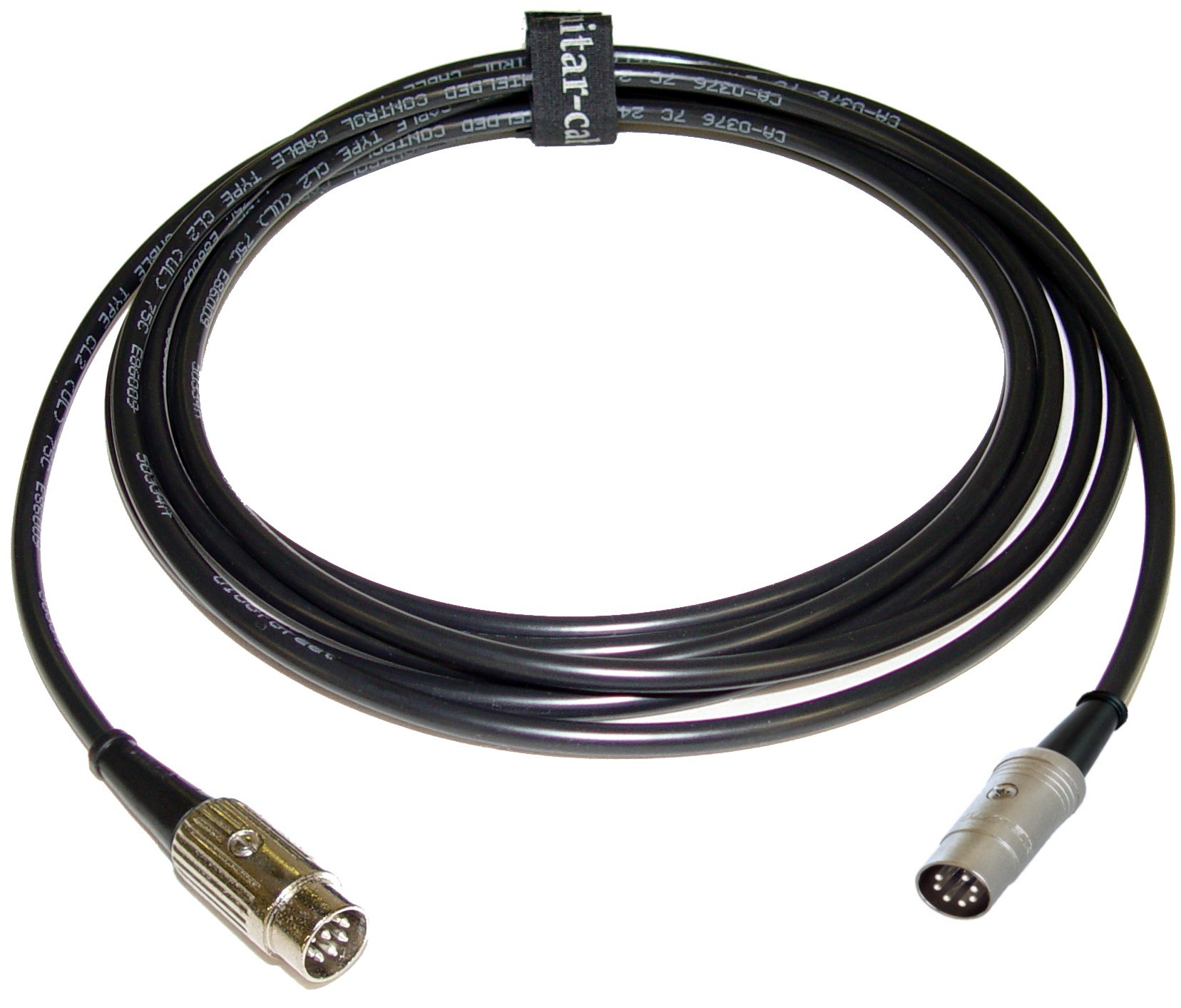

7 Pin din to 8 Pin Din cable for switching EVH 5150 III 100W Amplifier functions with the RJM Mini Amp Gizmo
7 Pin din to 8 Pin Din cable for switching EVH 5150 III 100W Amplifier functions with the RJM Mini Amp Gizmo
This cable features a 7 pin din to plug into the EVH 5150 III 100W amplifier and an 8 pin din to plug into the Mini Amp Gizmo to control channels 1, 2, and 3. Please note, the FX Loop of this amplifier will not be switchable. This cable is wired to feature the FX Loop in the "On" position at all times. The Mini Amp Gizmo needs to be set to Momentary mode by holding 8 as the MAG powers up, then when the LEDs turn on, release 8 and press 7.
If you are unsure of this cable's functionality with your equipment, please contact us with your questions. Also, please note that this cable is for the 100W version of this amplifier. The 50W version features MIDI built in.
