16CH Input Split w/ Multipin Out

A 16 channel passive input split designed to fit your monitor needs perfectly. This input split features 16 XLR inputs wired passively to (1) 61 pin output for FOH and (1) hard-wired cable tail with (16) low profile XLR male connectors. A 61 pin female to XLR Male fan is also included for mating to the panel and the other leg of your split.

These input splits are what we build, wire, and use in our mixer fly racks. These have been road tested and hold up to all the rigors that they may face in harsh live environments. These input splits are designed to get you on and off stage in a breeze, without sacrificing reliability.

Breakout length for the multipin to XLR fan cable is made at 18 inches long. If you'd like a different breakout length, please specify in the customer notes section of your order.

BTPA 16CH Split Features:

• 2U Rack Panel format

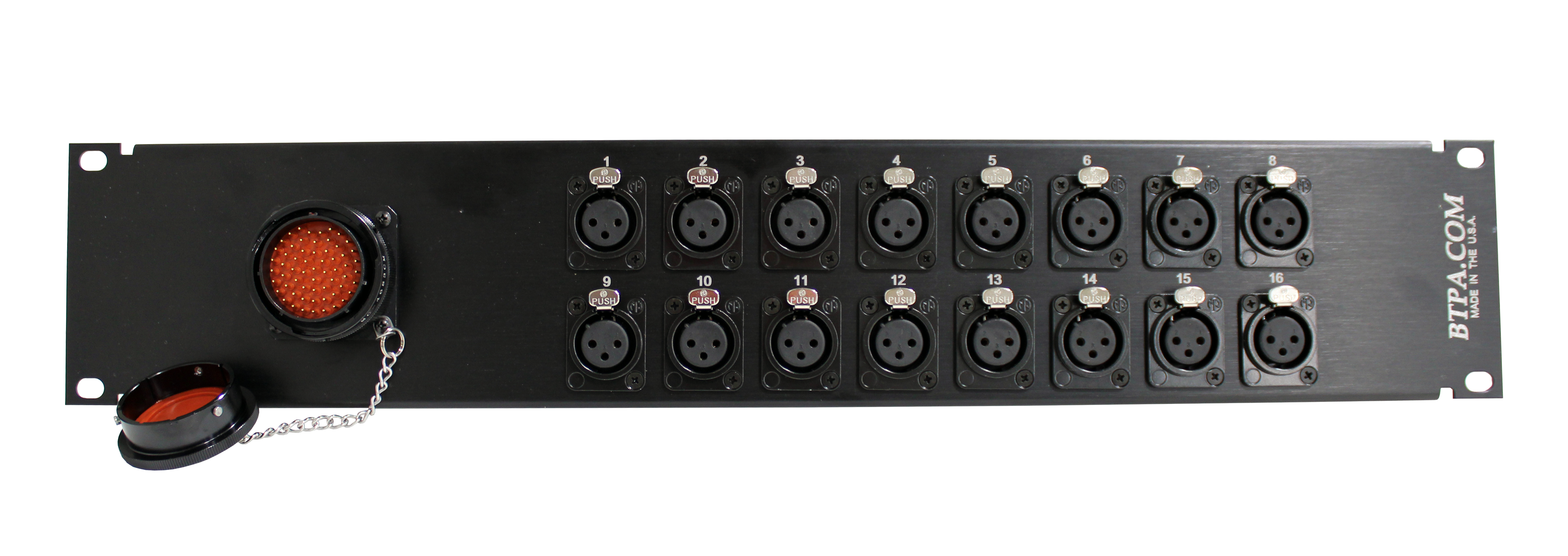

• Front Of Panel: (16) Neutrik XLR Female inputs and (1) BT61 BTPA 61 pin Male Output
• Back Of Panel: Hard-wired cable tail with (16) Low profile XLR male connectors
• 61 Pin multipin to (16) XLR Fan out cable
• Locking multipin connection point for a secure hold
• Expando Sleeve on XLR fan for ease with tangling
• Dust caps for all multipin connections
• Specify what cable length you need that fits your specific requirement

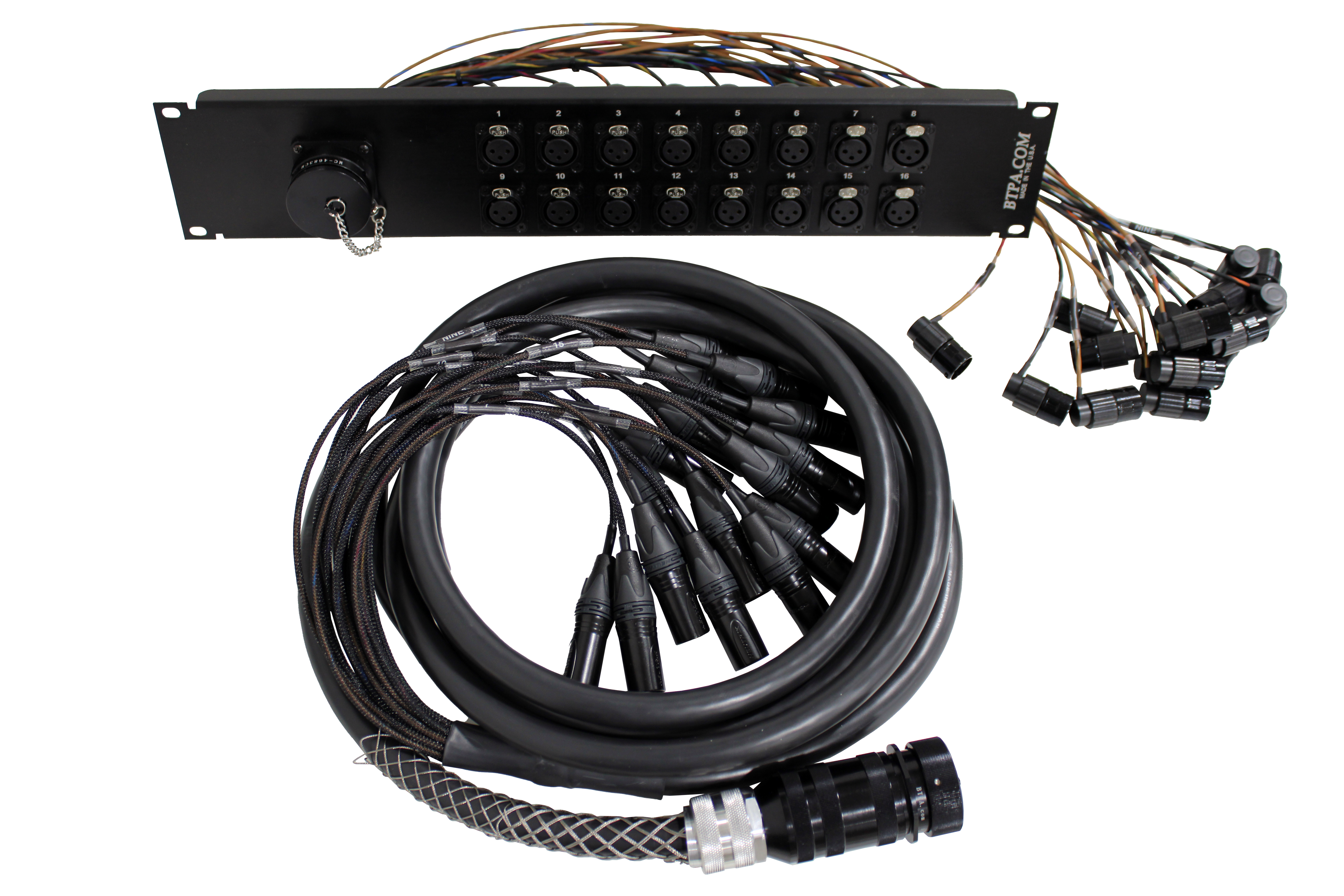

Whats In The Box?

• 2U passive 16 channel input split (BT-1466SC-XX)
• 61 pin female to XLRM Fan-Out Cable (BT-1464-XX)

In Stock OR Built To Order - We Have You Covered Either Way!

In typical BTPA fashion, we have these built-to-order. This allows you to customize lengths to fit whatever your need is. BUT we also keep inventory on the most common length combination of input split. The stock is being kept on the combination of split with a 2FT tail from the panel and 15FT multipin to fan cable.

As always, if you are needing something urgent and aren't sure what the lead-time is - give us a call or shoot us an email to sales@btpa.com. We always do what we can to accommodate.
