32CH Split panel with 32 XLR inputs, multipin output, and hardwired cable tail

32CH Input Split W/ Multipin Out

SKU: BT-32SPLIT01

32 Channel Input Split with (32) XLRF inputs, Multipin Output, (32) Low Profile XLR Male cable tails & (1) 100 pin to XLR Male fan-out cable

Customizable lengths on panel tail and multipin to fan-out cable.

Choose cable length for panel tail in dropdown list. Enter cable length for multipin to fan cable in box.

*Stock kept on splits with 3ft panel tails and 15ft multipin to fan cables* Other than that, it is our standard built-to-order format.

Best-Tronics Mfg., Inc.

Please enter length for cable in "Feet":

Cable price: $10.92

Click add to basket after entering length to view total price of cable

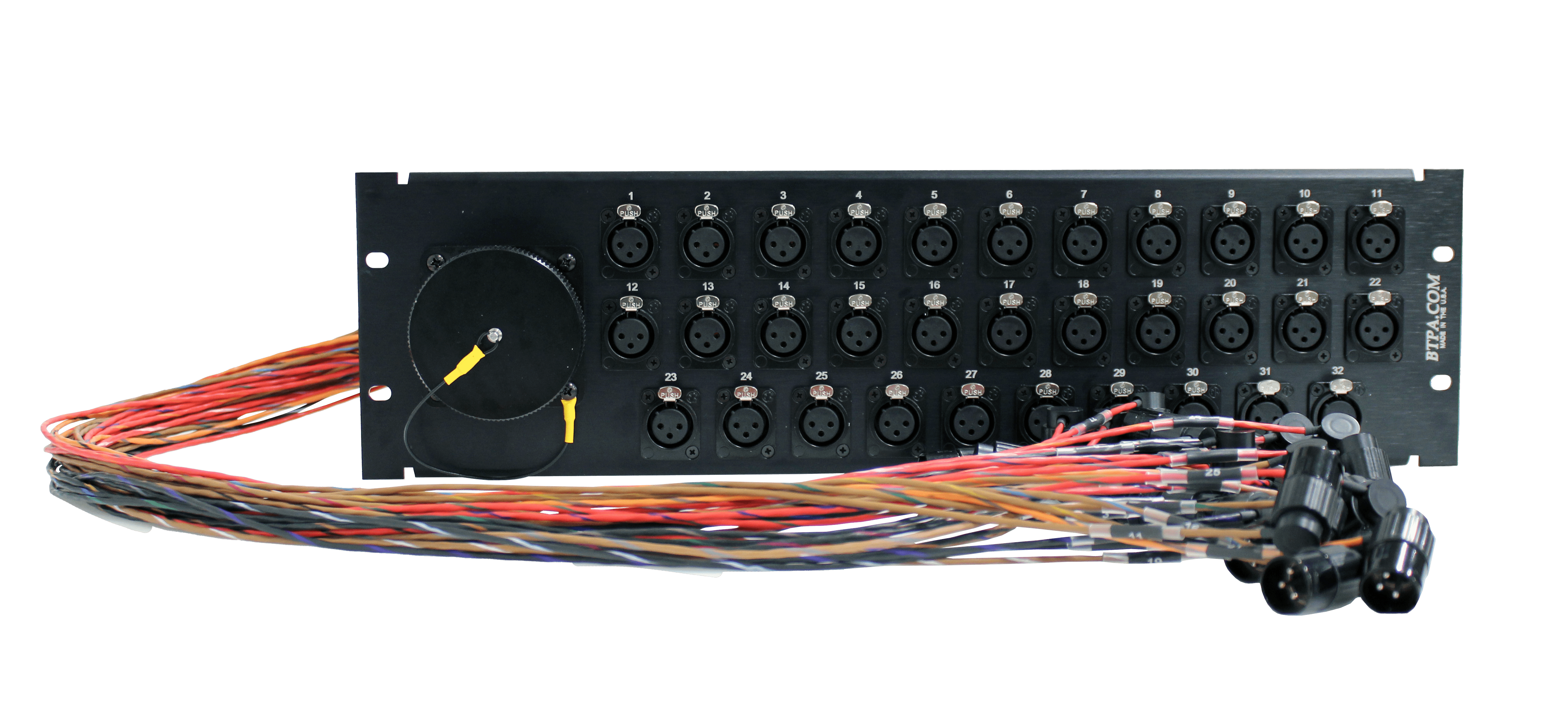

A 32 channel passive input split designed to fit your monitor needs perfectly. This input split features 32 XLR inputs wired passively to (1) 100 pin output for FOH and (1) hard-wired cable tail with (32) low profile XLR male connectors. A 100 pin female to XLR Male fan is also included for mating to the panel and the other leg of your split.

These input splits are what we build, wire, and use in our mixer fly racks. These have been road tested and hold up to all the rigors that they may face in harsh live environments. These input splits are designed to get you on and off stage in a breeze, without sacrificing reliability.

Breakout length for the multipin to XLR fan cable is made at 18 inches long. If you'd like a different breakout length, please specify in the customer notes section of your order.

BTPA 32CH Split Features:

3U Rack Panel format

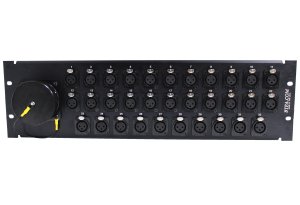

Front Of Panel: (32) Neutrik XLR Female inputs and (1) Syntax 100 pin Male Output

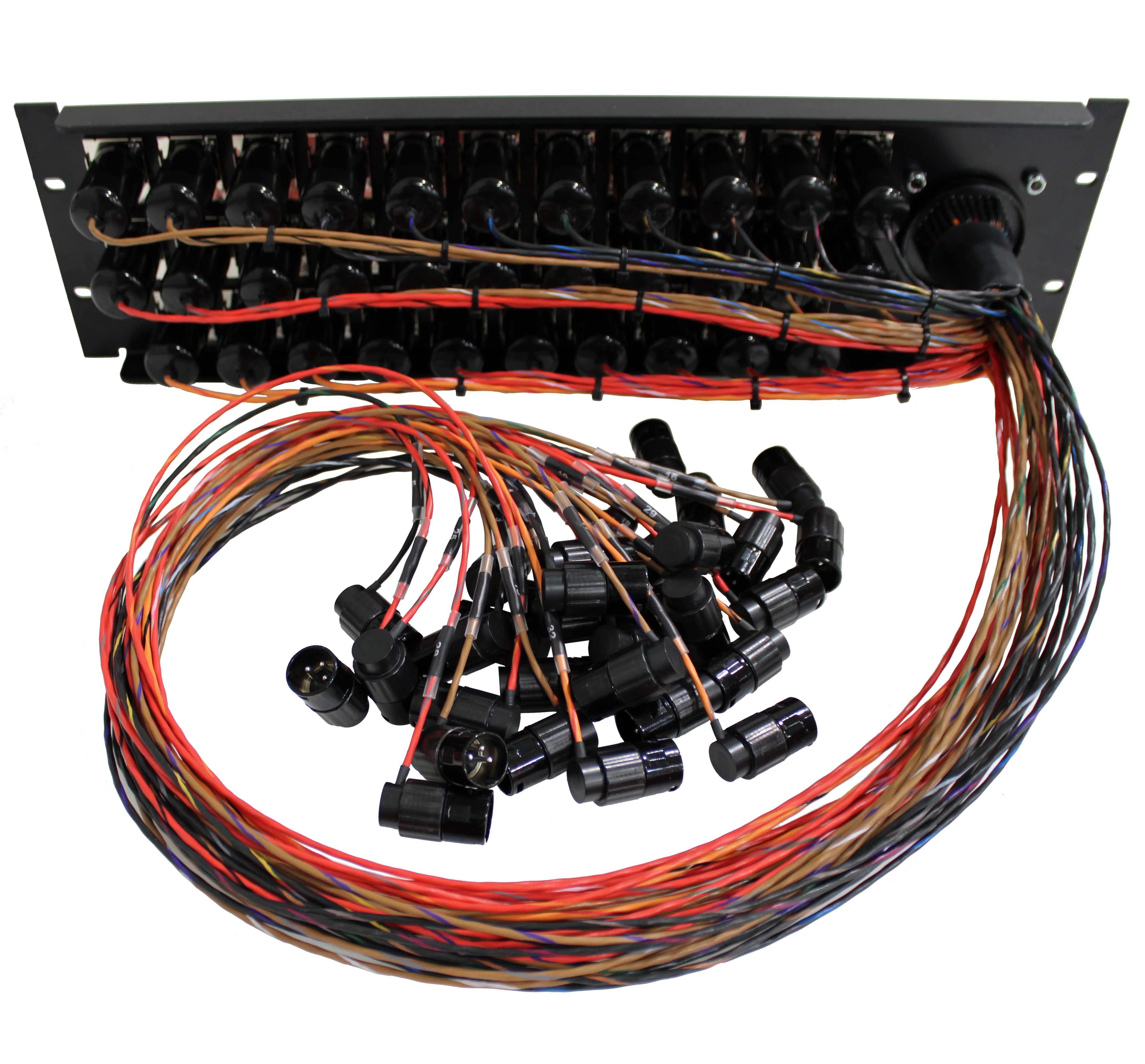

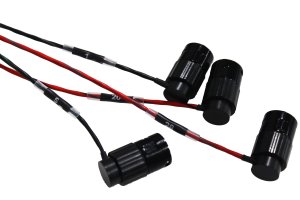

Back Of Panel: Hard-wired cable tail with (32) Low profile XLR male connectors

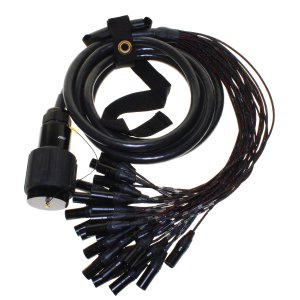

100 Pin multipin to (32) XLR Fan out cable
Rubber Locking Ring on 100 pin to fan cable
Expando Sleeve on XLR fan for ease with tangling
Dust caps for all multipin connections
Specify what cable length you need that fits your specific requirement

Whats In The Box?

3U passive 32 channel input split (BT-1460SC-XX)
100 pin to XLRM Fan-Out Cable (BT-1459-XX)

In Stock OR Built To Order - We Have You Covered Either Way!

In typical BTPA fashion, we have these built-to-order. This allows you to customize lengths to fit whatever your need is. BUT we also keep inventory on the most common length combination of input split. The stock is being kept on the combination of split with a 3FT tail from the panel and 15FT multipin to fan cable.

As always, if you are needing something urgent and aren't sure what the lead-time is - give us a call or shoot us an email to sales@btpa.com. We always do what we can to accommodate.

- SKU
  BT-32SPLIT01
- Weight
  10.5 lbs
Rack Height
3U
Channels
32
Input Connector Type
XLR female
Input Connector Brand
Neutrik
Panel Output Type
100 pin male chassis connector
Panel Connector Brand
Syntax
Panel Cable Tail Connector Type
XLR male
Panel Cable Tail Connector Brand
Switchcraft
Inline Multipin Connector Type
100 pin female inline connector with rubber locking ring
Inline Multipin Connector Brand
Syntax
Fan-Out Cable Connector Type
XLR Male
Fan Out Cable Connector Brand
Neutrik
Manufacturer
Best-Tronics Mfg., Inc.
Panel Cable Tail Length
12 INCHES, 18 INCHES, 24 INCHES, 30 INCHES, 36 INCHES, 42 INCHES, 48 INCHES, 54 INCHES, 60 INCHES
