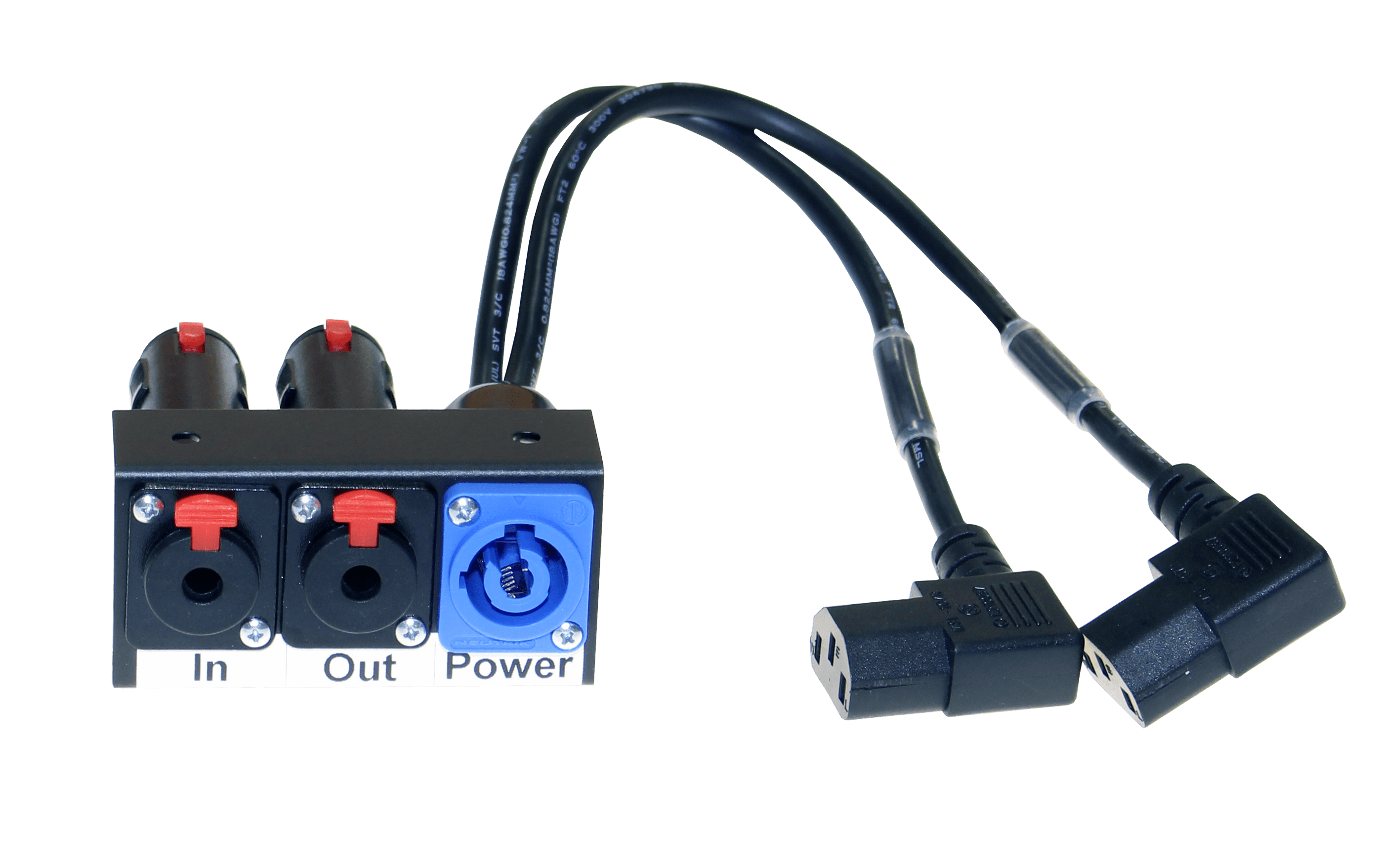

Pedaltrain Side Panel W/ (2) 1/4" Feedthrough + PowerCON to Dual Angled IEC Tails
SKU: PP-0012-03-THRUP2
3 Port Pedaltrain Panel with (2) 1/4" Locking TRS/TS Feedthrough Connectors and (1) PowerCON Input to TWO Right Angle IEC C13 cable tails
3 Port Pedaltrain Panel with (2) 1/4" Locking TRS/TS Feedthrough Connectors and (1) PowerCON Input to TWO Right Angle IEC C13 cable tails
This version of our 3 port Pedaltrain panel offers TWO IEC cable tails coming from the powerCON connector. This allows you to connect two items for powering to the panel. This will allow you to power two units (i.e. two power supplies) and still only run a single powerCON to your board.
The panel is setup standard as ports 1-2 as 1/4" and port #3 as the PowerCON. If you'd like this differently on your order, please specify on the customer notes when ordering. The Power Cable is measured from the back of the panel to the end of the IEC Connector.
PP-0012-03-THRUP2 Features:
- Run a single power cable to your board & power multiple supplies
- (1) BTPA Side mount panel for Pedaltrain boards (labeled per specification)
- (2) 1/4" Feedthrough connector
- (1) PowerCON to TWO right angled IEC C13 female cable assemblies, per length ordered
- All necessary mounting hardware for panel and connectors
Some Assembly Required!
The panel comes without the connectors installed as the screw holes are at the top of the panel. Connectors inserted into the panel would block these holes and prevent installation. Panel Installation Video:
The PowerCON connector will not be installed to the panel. The line cord will be crimped with the necessary quick connects. After installing the Panel to the pedalboard, you will need to install the Power Cable to the PowerCON Connector. This is easily done as you just need to slide the lugs on to the tabs of the PowerCON Connector.
If you need a PowerCON Cable to mate with this panel, please see our custom length pre-made option, POWER10-XX If you want a PowerCON to install to any existing power cable you have (no soldering required), please check our MC-0831 connector.
This product works on all CURRENT Classic and Novo models of Pedaltrains. It will not fit on legacy Pedaltrain 2 or Pedaltrain 1 models. Higher feet must be added to the board for this to fit on Legacy Pedaltrain 2 and Pedaltrain 1 models.
